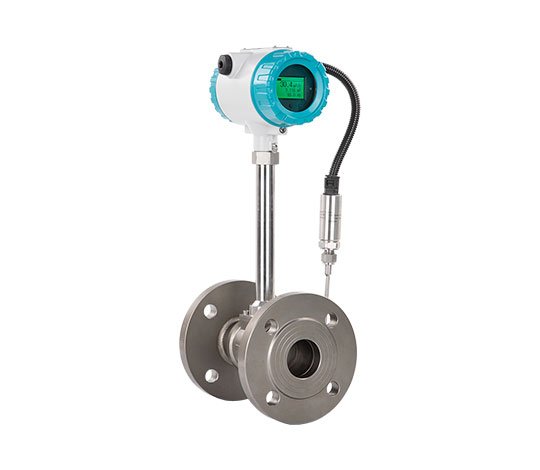

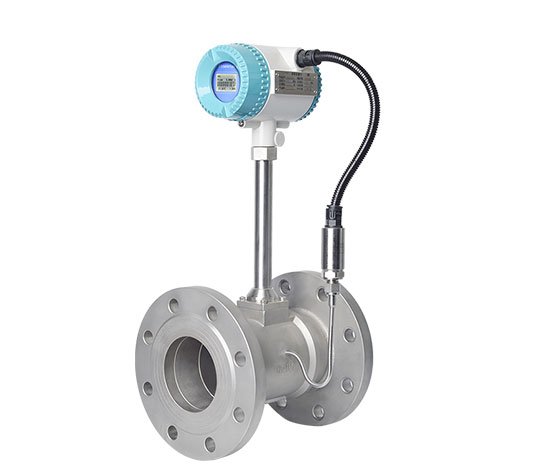

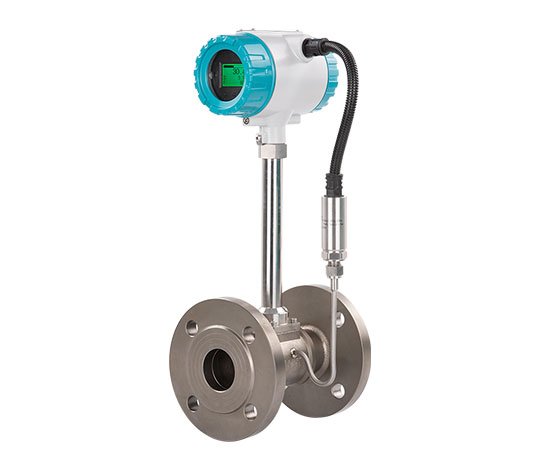

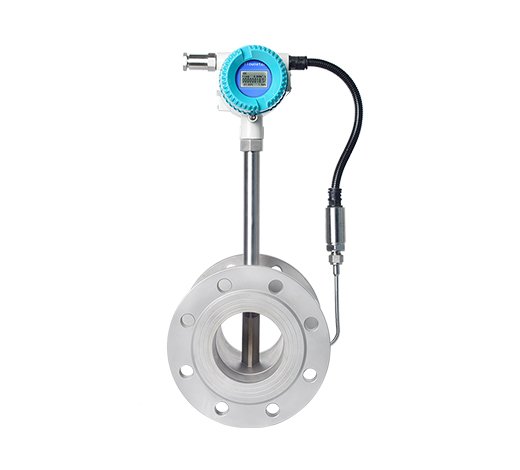

Remote Wallmounted Vortex Flow Meter is used in numerous branches of industry to measure the volume flow of liquids, gases and steam. Applications in the chemicals and petrochemicals industries, for example, in power generation and heat-supply systems involve widely differing fluids: saturated steam, superheated steam, compressed air, nitrogen, liquefied gases, flue gases, carbon dioxide, fully demineralized water, solvents, heat-transfer oils, boiler feedwater, condensate, etc.
Vortex flow meter advantages and disadvantages
Vortex flow meter body is robust and universally applicable for liquids, gases and steam,optimized for steam applications.
For gases measurement, if the gas temperature and pressure change a lot, pressure and temperature compensation will be a must, vortex flow meter could add temperature and pressure compensation.
Q & T Vortex flow meter adopt Japan OVAL technology and design.
To protect the sensor, Q&T vortex flow meter choose embedded sensor, with 4 piezo-electric crystal encapsulated inside the sensor, which is our own patent.
There is no moving parts, no abrasion, non-wearing parts inside the vortex flow meter sensor, fully welded SS304 body (SS316 selectable).
With patented sensor and flow sensor body, Q&T vortex flow meter could eliminate drift & vibration influence from great aspect in the working site while compare with other flow meters.
Apart from electromagnetic flow meter and ultrasonic flow meter could work as flow meter and BTU meter, add the temperature sensor and totalizer, vortex flow meter could also work as BTU meter and measure steam or hot water energy.
Requires very few power consumption: 24 VDC, 15 Watts maximum;
In gas measurement, vortex flow meter could achieve high accuracy ±0.75%~±1.0% of reading ( gas ±1.0%, liquid ±0.75%); which could use in custody transfer , while the metal tube rotameter or orifice plate usually use for process control.
With a variety of signals outputs and selection, such as 4-20mA, pulse with HART or pulse with RS485 are selectable.
In the electronic device of measuring flow, vortex flow meter is the only one could resist wide temperature range up to highest temperature 350℃, digital flow meter highest process temperature.
Vortex flow meter applications
Vortex flow meter is professional in measuring non-conductive liquids, gases, saturated and superheated steam, especially for steam measurement trade settlement.
Except work as flow meter, vortex flow meter can also work as heat meter to measure the Gross/net heat of steam and hot water.
Vortex flow meter usually monitor the compressor output and evaluation of Free Air Delivery (FAD)
There has lots of Industrial gases, such as natural gas, nitrogen gas, liquefied gases, flue gases, carbon dioxide etc, all could use vortex flow meter.
In many factories, compressed air monitoring is very important, vortex flow meter also could use for process control.
Besides the different gases measurement, vortex flow meter could also used for light oil or any purified water，such as thermal oils, Desalinated water, demineralized water, RO water, boiler feed water, condensate water etc.
In the Chemicals and petrochemicals industries, there also has lots of gases or liquid could use vortex flow meter for monitoring.
Table 1: Remote Wallmounted Vortex Flow Meter Technical Data
| Measured Medium | Liquid, Gas, Steam |
| Medium Temp | -40℃~+200℃; -40℃~+280℃; 40℃~+350℃ |
| Nominal Pressure | 1.6MPa;2.5MPa;4.0MPa(Other pressure can be custom,need consult supplier) |
| Accuracy | 1.0%(Flange), 1.5%(Insertion) |
| Measuring range ratio | 1:10(Standard air condition as reference) 1:15(Liquid) |
| Flow Range | Liquid:0.4-7.0m/s; Gas:4.0-60.0m/s; Steam:5.0-70.0m/s |
| Specifications | DN15-DN300(Flange), DN80-DN2000(Insertion), DN15-DN100(Thread), DN15-DN300(Wafer), DN15-DN100(Sanitary) |
| Material | SS304(Standard), SS316(Optional) |
| Pressure Loss Coefficient | Cd≤2.6 |
| Vibration Acceleration Allowed | ≤0.2g |
| IEP ATEX | II 1G Ex ia IIC T5 Ga |
| Ambient Condition | Ambient Temp:-40℃-65℃(Non-explosion-proof site); -20℃-55℃(Explosion-proof site) Relative Humidity:≤85% Pressure:86kPa-106kPa |
| Power Supply | 12-24V/DC or 3.6V battery powered |
| Communication | RS485 Modbus, HART |
| Signal Output | Pulse frequency signal 2-3000Hz, Low level≤1V, high level≥6V |
Two-wire system 4-20 signal(isolated output), Load≤500 |

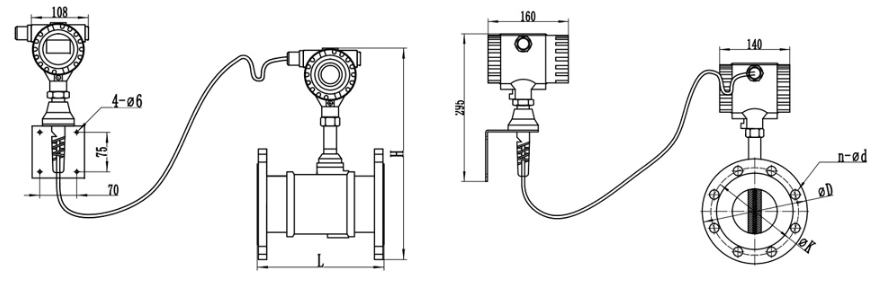

Table 2: Remote Wallmounted Vortex Flow Meter Structure Drawing
Table 2: Remote Wallmounted Vortex Flow Meter Structure Drawing
| Caliber(mm) | L | H | D | K | n | d |
| 15 | 170 | 440 | 95 | 65 | 4 | 14 |
| 20 | 170 | 446 | 105 | 75 | 4 | 14 |
| 25 | 170 | 450 | 115 | 85 | 4 | 14 |
| 32 | 170 | 463 | 140 | 100 | 4 | 18 |
| 40 | 190 | 465 | 150 | 110 | 4 | 18 |
| 50 | 190 | 470 | 165 | 125 | 4 | 18 |
| 65 | 220 | 487 | 185 | 145 | 4 | 18 |
| 80 | 220 | 500 | 200 | 160 | 8 | 18 |
| 100 | 240 | 533 | 220 | 180 | 8 | 18 |
| 125 | 260 | 560 | 250 | 210 | 8 | 18 |
| 150 | 280 | 608 | 285 | 240 | 8 | 22 |
| 200 | 300 | 640 | 340 | 295 | 12 | 22 |
| 250 | 360 | 705 | 405 | 355 | 12 | 26 |
| 300 | 400 | 408 | 460 | 410 | 12 | 26 |
Table 3: Remote Wallmounted Vortex Flow Meter Flow Range
| Size(mm) | Liquid(Reference medium:normal temperature water, m³/h) | Gas(Reference medium:20℃, 101325pa condition air, m³/h) | ||
| Standard | Extended | Standard | Extended | |
| 15 | 0.8~6 | 0.5~8 | 6~40 | 5~50 |
| 20 | 1~8 | 0.5~12 | 8~50 | 6~60 |
| 25 | 1.5~12 | 0.8~16 | 10~80 | 8~120 |
| 40 | 2.5~30 | 2~40 | 25~200 | 20~300 |
| 50 | 3~50 | 2.5~60 | 30~300 | 25~500 |
| 65 | 5~80 | 4~100 | 50~500 | 40~800 |
| 80 | 8~120 | 6~160 | 80~800 | 60~1200 |
| 100 | 12~200 | 8~250 | 120~1200 | 100~2000 |
| 125 | 20~300 | 12~400 | 160~1600 | 150~3000 |
| 150 | 30~400 | 18~600 | 250~2500 | 200~4000 |
| 200 | 50~800 | 30~1200 | 400~4000 | 350~8000 |
| 250 | 80~1200 | 40~1600 | 600~6000 | 500~12000 |
| 300 | 100~1600 | 60~2500 | 1000~10000 | 600~16000 |
| 400 | 200~3000 | 120~5000 | 1600~16000 | 1000~25000 |
| 500 | 300~5000 | 200~8000 | 2500~25000 | 1600~40000 |
| 600 | 500~8000 | 300~10000 | 4000~40000 | 2500~60000 |
Table 4: Vortex Flow Meter Model Selection
| LUGB-2 | x | x | x | x | x | x | x | x | x | x | x | ||
| Caliber | DN15-300mm/1/2″-12″ | ||||||||||||
Measured Medium | Saturated Steam | S | |||||||||||
| Superheated Steam | M | ||||||||||||
| Common Gas | C | ||||||||||||
| Liquid | L | ||||||||||||
| Others | O | ||||||||||||
Nominal Pressure | 0.6MPa | 1 | |||||||||||
| 1.0MPa | 2 | ||||||||||||
| 1.6MPa | 3 | ||||||||||||
| 2.5MPa | 4 | ||||||||||||
| 4.0MPa | 5 | ||||||||||||
| Nominal Temperature | -40℃~250℃ | 2 | |||||||||||
| -40℃~350℃ | 3 | ||||||||||||
Structure | Compact type | C | |||||||||||
| Remote type (converter display) | R1 | ||||||||||||
| Remote type (flow computer remote display) | R2 | ||||||||||||
Connection | Flange(DN15-300mm) | PN10/PN16/PN25/PN40(DIN) | D** | ||||||||||
| A15:150#, A30:300# (ANSI) | A** | ||||||||||||
| 10K/20K/30K/40K (JIS) | J** | ||||||||||||
| Wafer(DN15-300mm) | W | ||||||||||||
| Thread(DN15-100mm) | T | ||||||||||||
| Insertion(DN80-2000mm) | I | ||||||||||||
| Body Material | SS304 (standard) | 4 | |||||||||||
| SS316 | 6 | ||||||||||||
Compensation | Without | W0 | |||||||||||
| With temperature compensation | WT | ||||||||||||
| With pressure compensation | WP | ||||||||||||
| With temperature & pressure compensation | W2 | ||||||||||||
| Output | 4-20mA,pulse,RS485 | A | |||||||||||
| 4-20mA,pulse,HART (converter display only) | B | ||||||||||||
Power Supply | DC24V | D | |||||||||||
| 3.6V Battery Powered (converter display only) | B | ||||||||||||
| AC220V (flow computer type only) | A | ||||||||||||
| Ex-Proof | Without | W | |||||||||||
| With (Exia ll CT5 Ga) | E | ||||||||||||
Vortex Flow Meter Installation Requirements
The installation of vortex flow meter has higher requirements, to guarantee the better accuracy and working properly.
Vortex flow meter installation should keep away from the electric motors, big frequency converter, power cable, transformers, etc.
Do not install in the position where there has bends, valves, fittings, pumps etc, which could cause flow disturbances and influence the measurement.

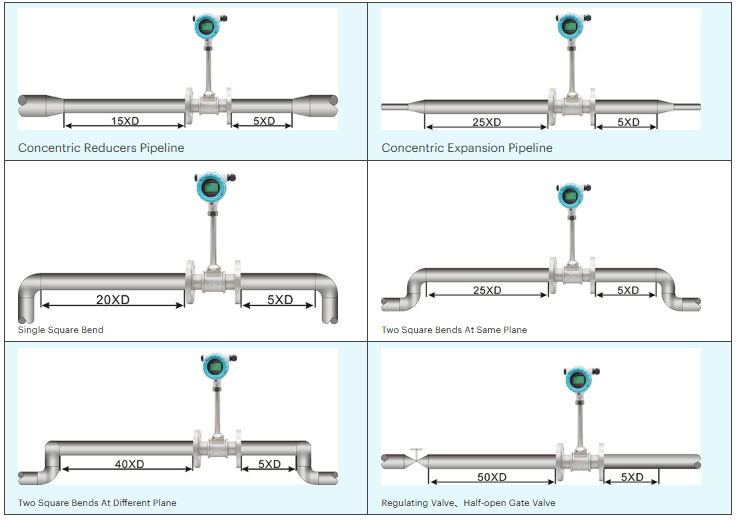

The front straight pipe line and after straight pipe line should follow below suggestion.
Vortex Flow Meter Daily Maintenance
Regular cleaning: The probe is an important structure of the vortex flowmeter. If the detection hole of the probe is blocked, or is entangled or wrapped by other objects, it will affect the normal measurement, resulting in inaccurate results;
Moisture-proof treatment: most of the probes have not undergone moisture-proof treatment. If the use environment is relatively humid or is not dried after cleaning, the performance of the vortex flow meter will be affected to a certain extent, resulting in poor operation;
Minimize external interference: strictly check the grounding and shielding conditions of the flow meter to ensure the accuracy of the flow meter measurement;
Avoid vibration: There are some parts inside the vortex flowmeter. If strong vibration occurs, it will cause internal deformation or fracture. At the same time, avoid the inflow of corrosive liquid.
